OIDC Authentication

Pro

This section only applies to the Pro edition.

Cloudreve supports connecting to authentication services that comply with the OpenID Connect (OIDC) specification to implement single sign-on. This article will illustrate how to connect to the authentication services of Microsoft Entra ID (Azure AD) and Google.

Logto

Cloudreve natively supports Logto. You can directly configure Logto's authentication service in the Cloudreve admin panel under Settings -> User Session -> Third-party sign-in.

Tencent QQ

Cloudreve natively supports QQ Connect. You can directly configure Tencent QQ's authentication service in the Cloudreve admin panel under Settings -> User Session -> Third-party sign-in.

Microsoft Entra ID (Azure AD)

Create an Application Registration

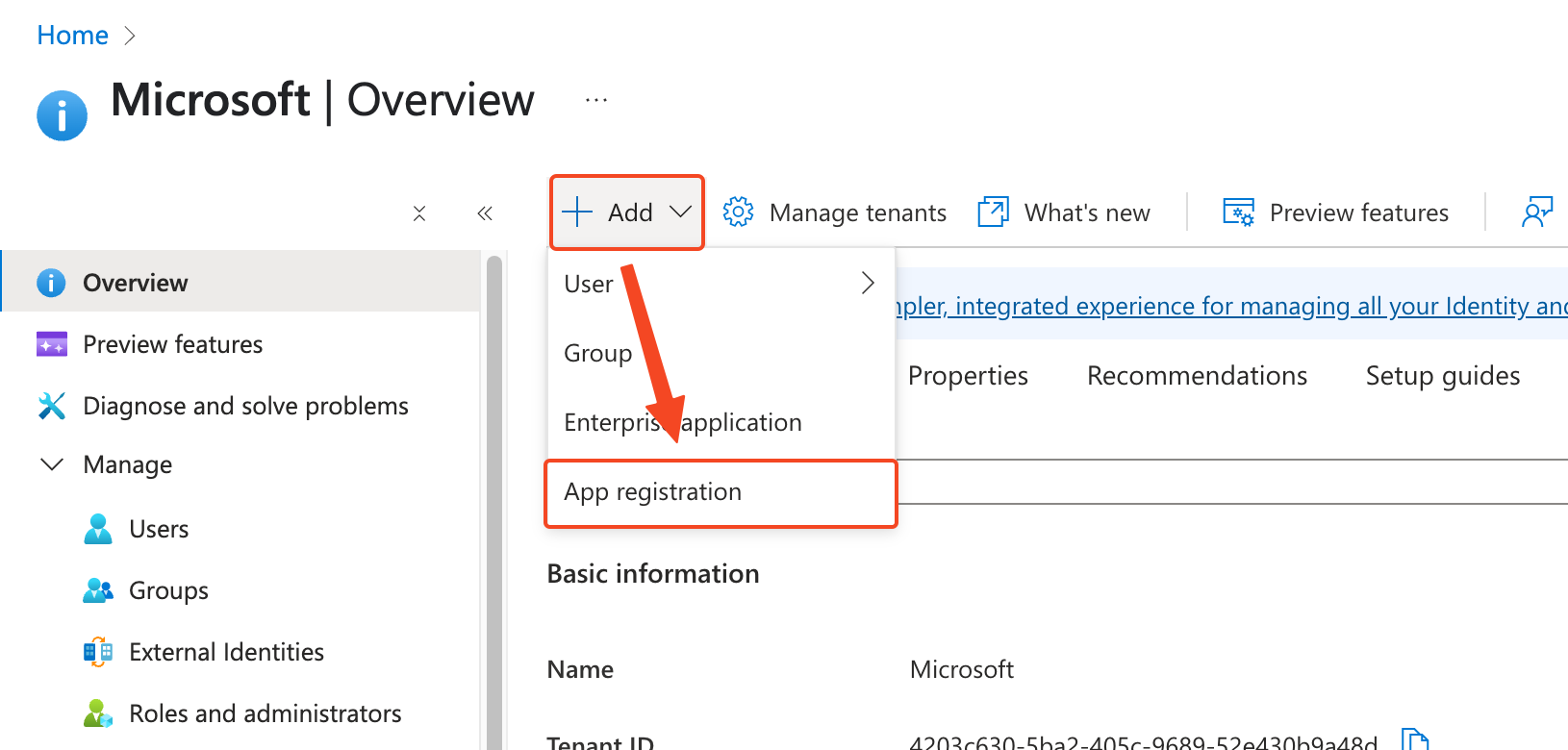

Log in to the Azure portal, select Microsoft Entra ID from the left navigation bar, then select Add, and click App registration.

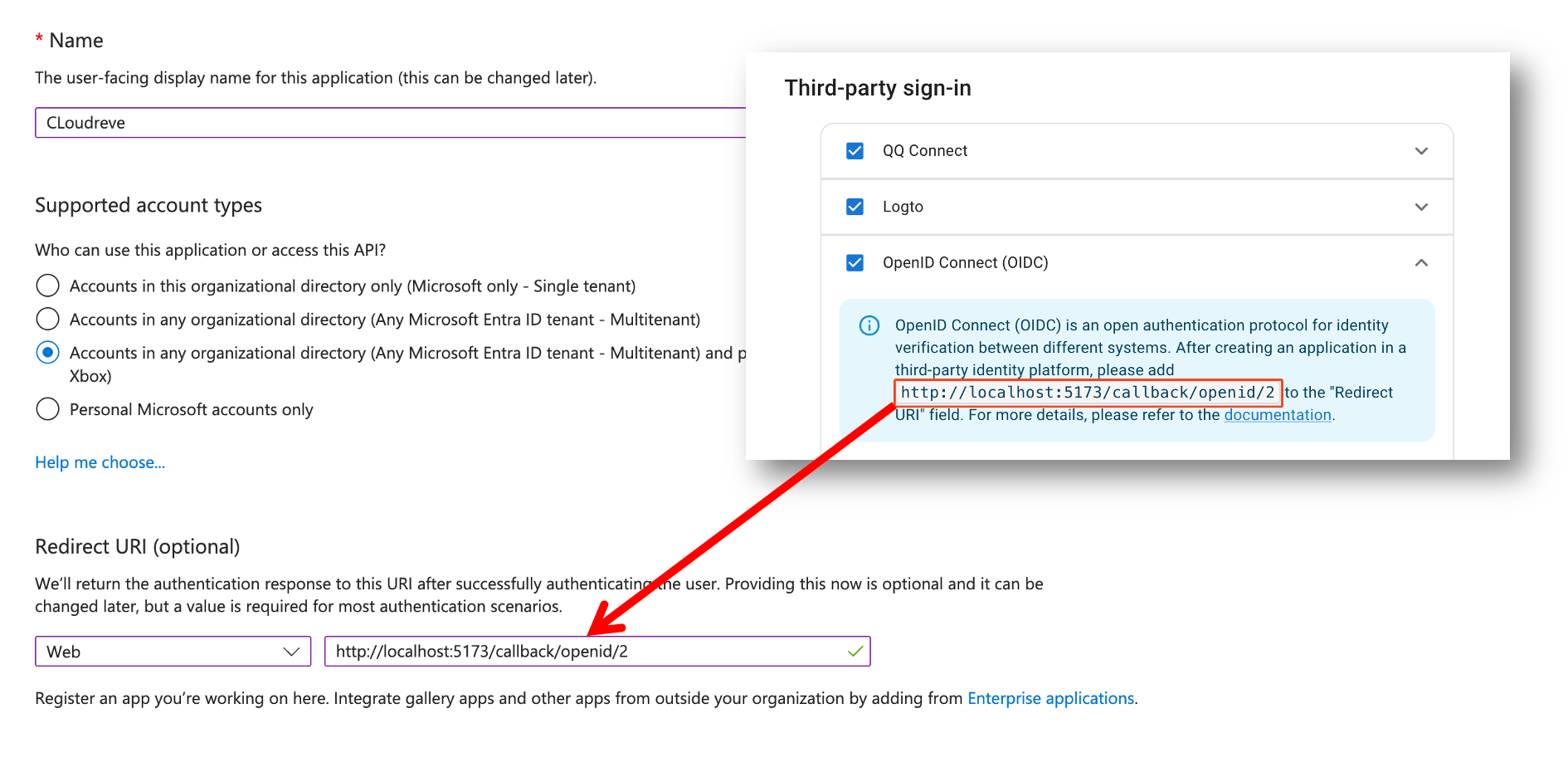

Enter the application name in the Name field, for example, Cloudreve, and select Supported account types as needed. Go to the Cloudreve admin panel Settings -> User Session -> Third-party sign-in, check OpenID Connect (OIDC) and get the redirect URL from the prompt, fill it in, and select the type as Web.

Configure Client Secret

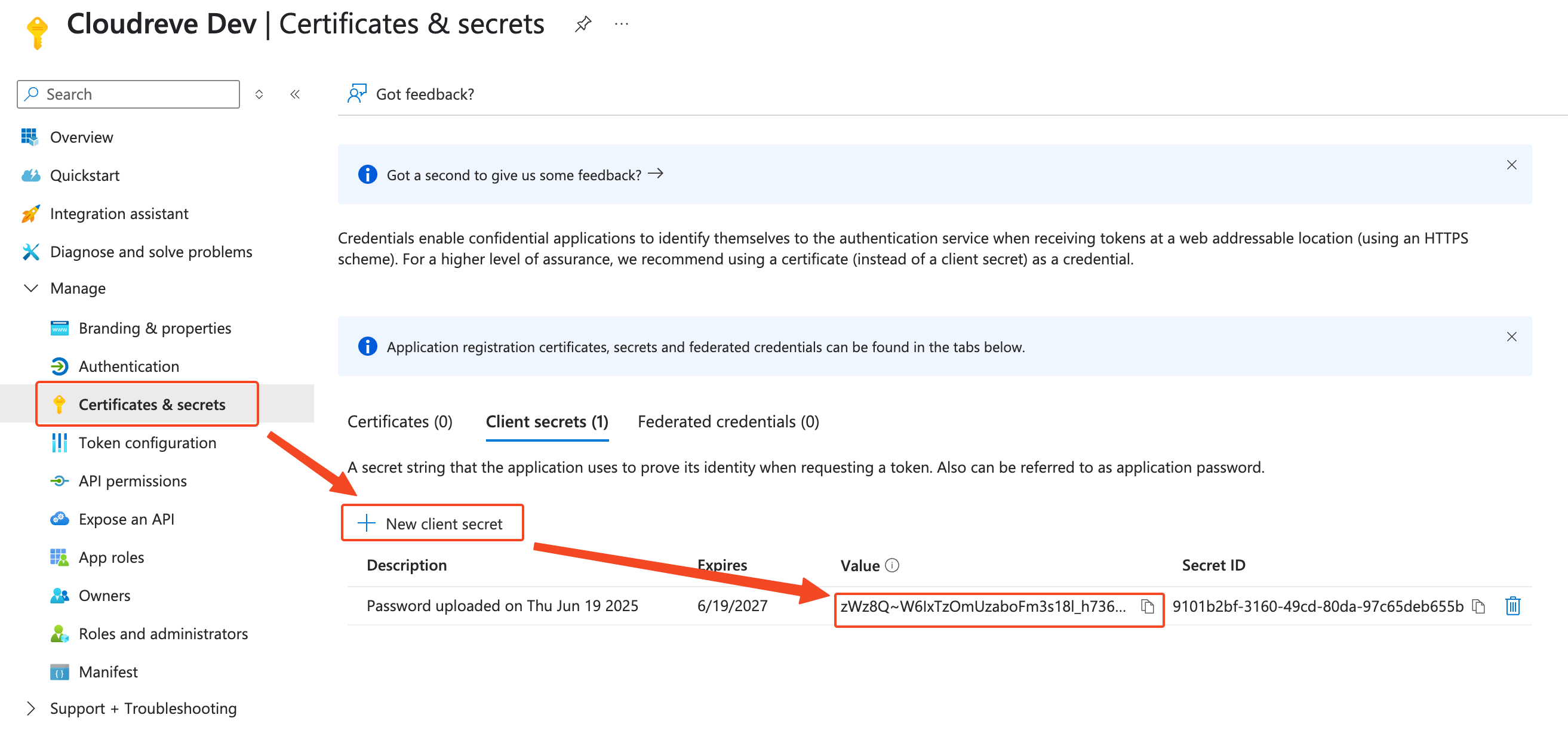

After creating the application, select Certificates & secrets from the left navigation bar, click New client secret, enter a description for the secret, click Add, and fill the obtained secret value into Cloudreve's Client Secret field.

Important

Please note that after the client secret expires, you need to generate a new one and update it in Cloudreve.

Configure Client ID and Discovery Document

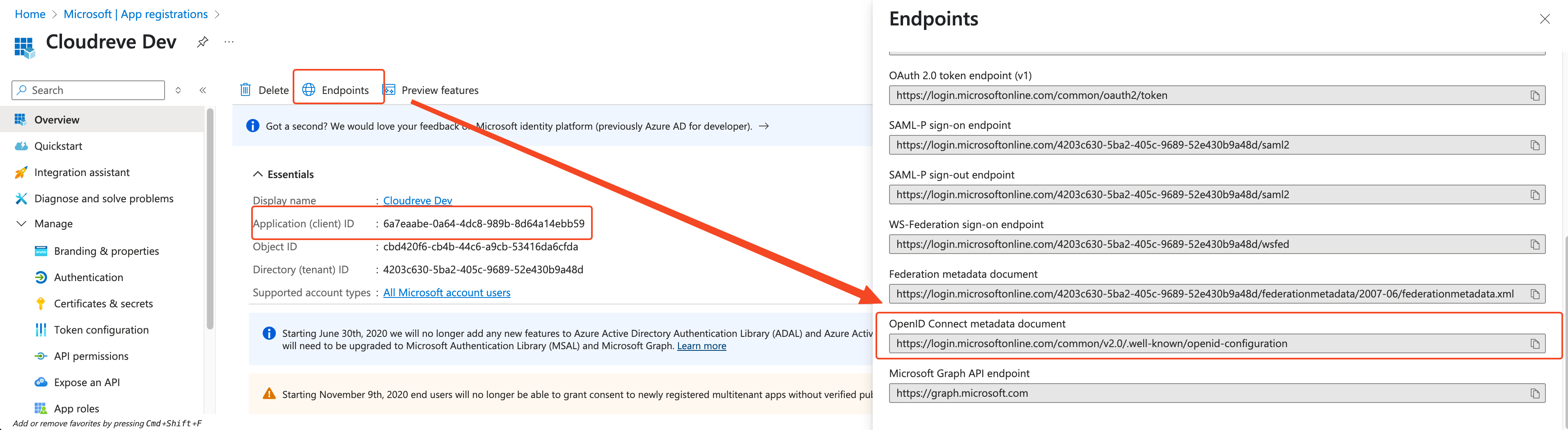

Go back to the application's "Overview" page, copy the Application (client) ID into Cloudreve's Client ID field. Click Endpoints and copy the OpenID Connect metadata document URL for later use.

In Cloudreve's OIDC Wellknown Config section, click Import from URL, paste the OpenID Connect metadata document URL copied in the previous step, and submit.

After saving the settings, you can use Microsoft Entra ID (Azure AD) for authentication.

Google

Create an Application Registration

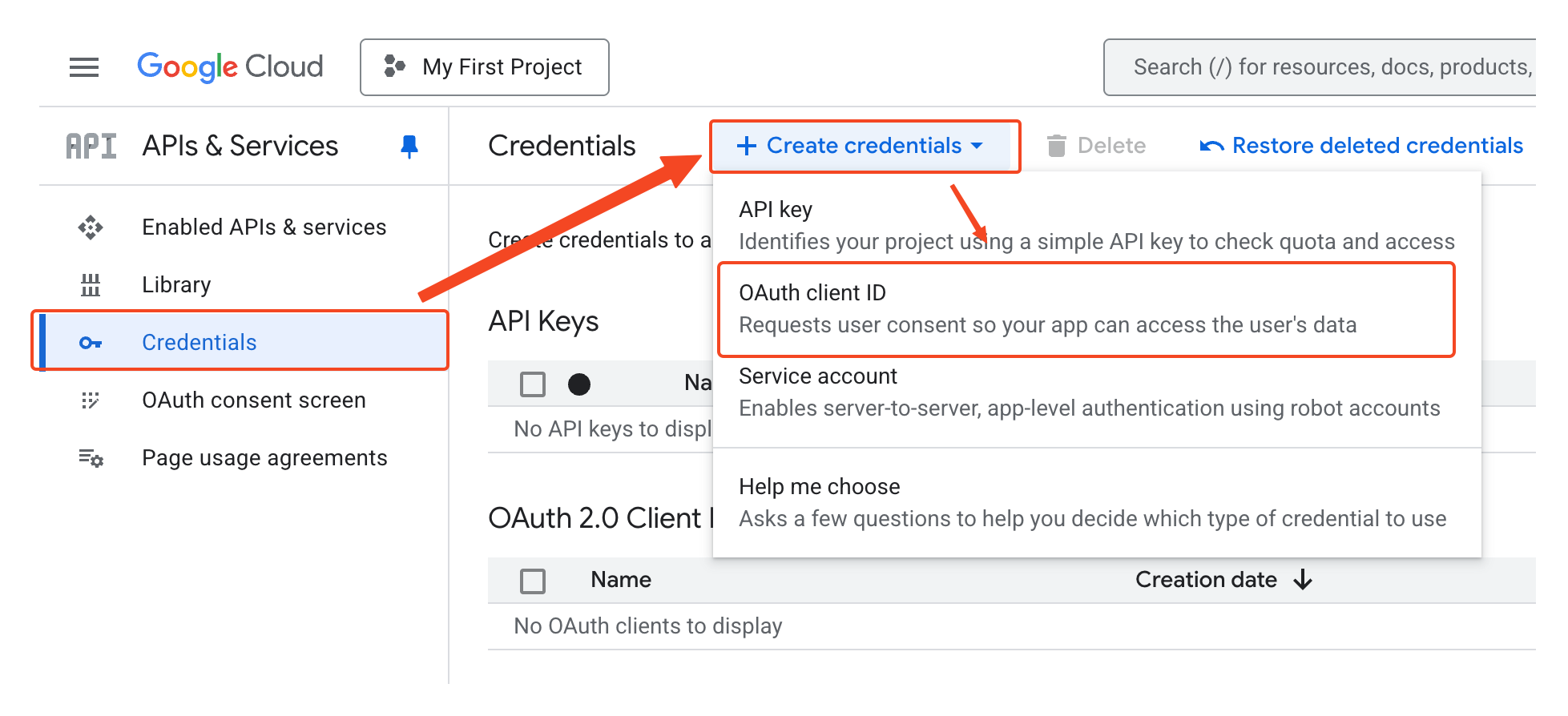

Log in to the Google Cloud Console, select APIs & Services -> Credentials from the left navigation bar, then Create credentials -> OAuth client ID.

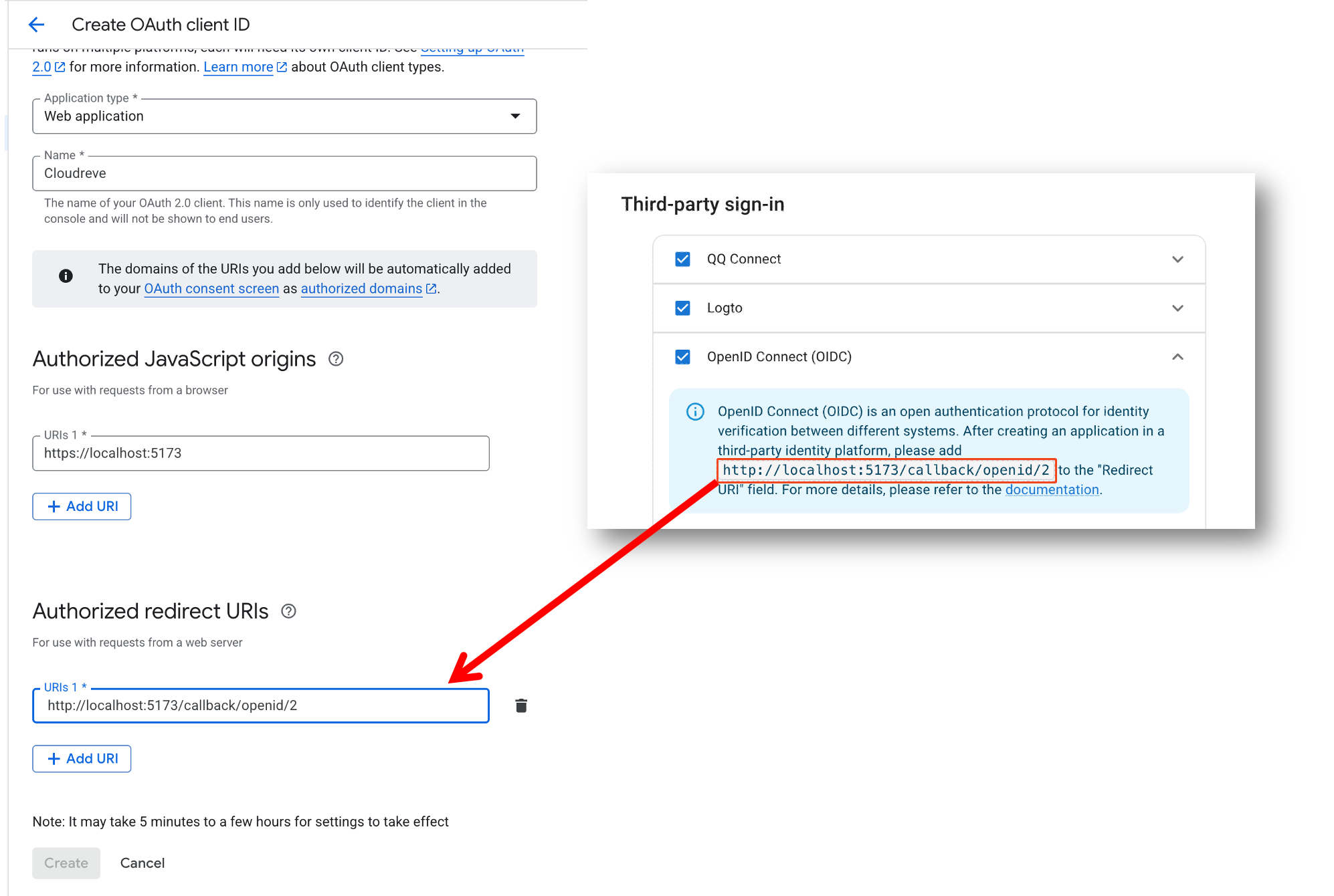

Select the application type as Web application, and enter the application name in the Name field, for example, Cloudreve. Go to the Cloudreve admin panel Settings -> User Session -> Third-party sign-in, check OpenID Connect (OIDC) and get the redirect URL from the prompt, and fill it into Authorized redirect URIs. In Authorized JavaScript origins, enter your site address, for example, https://cloudreve.org.

Configure Client ID and Secret

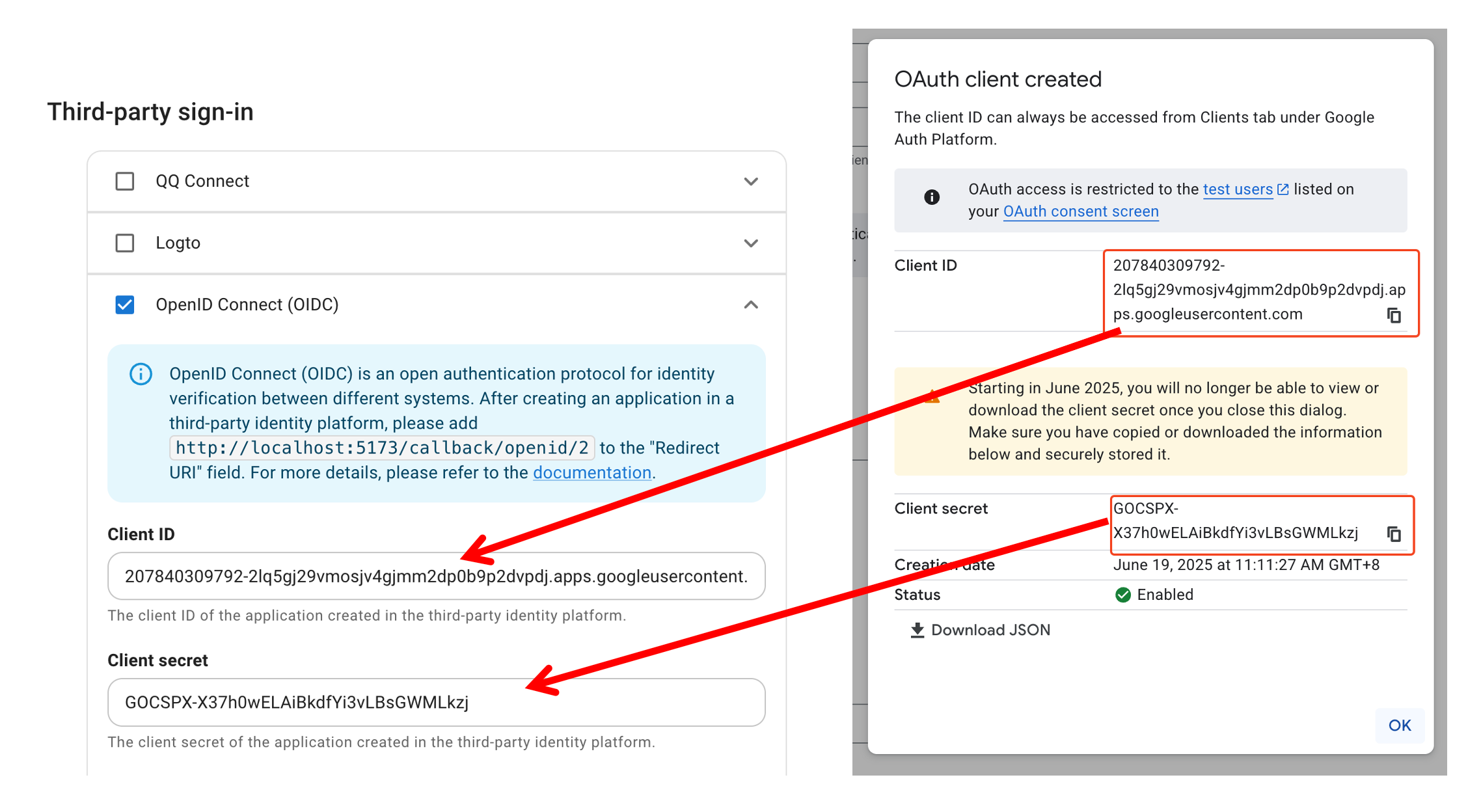

After creating the application, a dialog will show the Client ID and Client secret. Fill them into Cloudreve's Client ID and Client Secret fields.

Configure Discovery Document

In Cloudreve's OIDC Wellknown Config section, click Import from URL, enter https://accounts.google.com/.well-known/openid-configuration and submit.

After saving the settings, you can use Google for authentication.

OIDC Compatibility

The OIDC service connected to Cloudreve has the following basic requirements:

Required:

• Support for using client_secret_post to exchange for an access_token;
• Support for response_type of code;
• Supported scope includes openid, email, profile;
• Provides a userinfo_endpoint to get user information;

Not required, but recommended:

• Provide Email and avatar URL in userinfo_endpoint;
• Provide end_session_endpoint to redirect the user to the authentication server to log out;
